Spartherm – Linear Tunnel 60×51
Enjoy your wood fire from both sides
The Linear Tunnel 60×51 is a medium-sized see-through tunnel wood fire that can be enjoyed from 2 separate rooms or living areas. It makes full use its heating and visual properties as you can see it from both sides. It is equipped with an elevating and drop down/side opening door that provides easy access to the interior and is simple to control with the smooth acting air slide.
Specifications
| Brand | Spartherm |

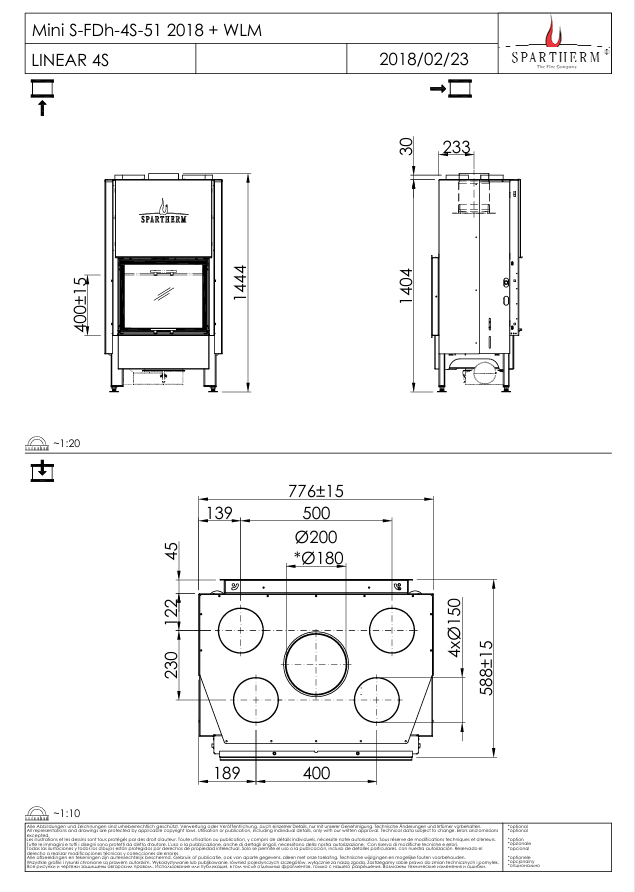

| Spartherm ID | Mini S-FDh-4S |
| Series | Linear |
| Category | Wood fires |
| EcoDesign Ready | Yes |
| Energy efficiency class | A |
| Model | Built-in |
| Fire view | Tunnel |
| Shape | Horizontal |
| Fuel | Wood |
| Combustion system | Combustion air from living area |
| Suitable for passive houses | No |
| Glass window | Standard glass, Double glazing |
| Door type | Elevating door with integral handle |
| Control | Manual control, Remote control Sesam, Smartphone/tablet |
| S-Thermatik NEO | Optional |
| Colours | Black |
| Material | Steel |
| Interior | White chamotte, Black chamotte |
| Output net min. (kW) | 4.5 |
| Output net max. (kW) | 7.8 |
| Max. log length (cm) | 25 |
| Efficiency (%) | 78.0 |
| CO emission (%-13% O2) | 0.1 |
| NOx emission (mg/Nm3-13% O2) | 93 |
| Built-in depth (mm) | 603 |
| Fire view width (mm) | 600 |
| Fire view height (mm) | 510 |
| Weight (kg) | 286 |
| Flue | Top |
| Flue Ø (mm) | 180, 200 |
| External air connection | Rear |
| Convection connection | Yes |
| 230V necessary | No |
| Approvals | EN13229, BlmSchV, EcoDesign |
