Spartherm – Linear Triple 50x74x50
Wood fire with panoramic view

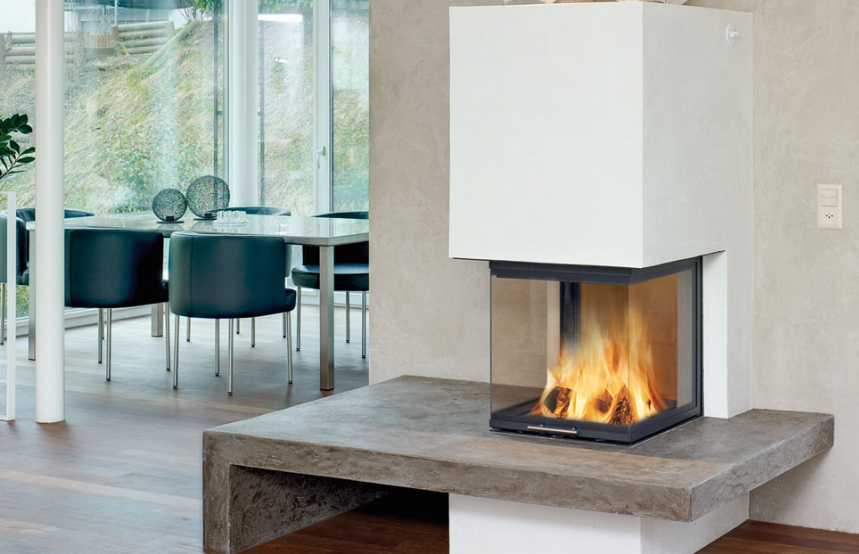

The Linear Triple 50x74x50 is a compact 3-sided build in wood fire, which can be used to divide large living areas into separate spaces due to its impressive 14.8 kW heat output and all-round visual appeal. It has a clever elevating door system for easy access and the option of an ingenious floating hearth kit so it can be installed at eye-level when you are seated.
Specifications
| Brand | Spartherm |
| Spartherm ID | Arte U-70h-4S |
| Series | Linear |
| Category | Wood fires |
| EcoDesign Ready | Yes |
| Energy efficiency class | A+ |
| Model | Built-in |
| Fire view | 3-sided |
| Shape | Square |
| Fuel | Wood |
| Combustion system | Combustion air from living area |
| Suitable for passive houses | No |
| Glass window | Standard glass |
| Door type | Elevating door with integral handle |
| Control | Manual control, Remote control Sesam, Smartphone/tablet |
| S-Thermatik NEO | Optional |
| Colours | Black |
| Material | Steel |
| Interior | White chamotte, Black chamotte |
| Output net min. (kW) | 8.0 |
| Output net max. (kW) | 14.8 |
| Max. log length (cm) | 33 |
| Efficiency (%) | 80.0 |
| CO emission (%-13% O2) | 0.1 |
| NOx emission (mg/Nm3-13% O2) | 91 |
| Built-in depth (mm) | 921 |
| Fire view width (mm) | 500 |
| Fire view height (mm) | 500 |
| Weight (kg) | 342 |
| Flue | Top |
| Flue Ø (mm) | 200, 250 |
| External air connection | Rear |
| Convection connection | Yes |
| 230V necessary | No |
| Approvals | EN13229, BlmSchV, Defra, EcoDesign |
The content of this website is intended for initial assistance only – for full details please contact the showroom or refer to the manufacturers website for each product – there you will find full technical details, the product fiche etc which gives all efficiencies, installation instructions, dimensions and so on. We are more than happy to provide these but do not have the facility on this website. If you let us know which fires you are interested in, we can provide full details by email. If you have any questions at all please let us know. Happy Browsing! In the showroom or by email we are quite happy to provide full technical advice about installation and suitability
