Spartherm – Linear Triple 50x54x50
Sleek, frameless wood burning fire

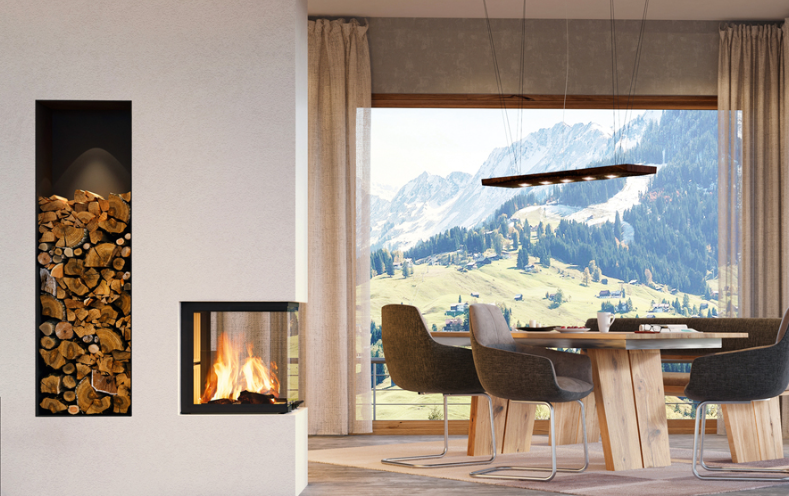

The Linear Triple 50x54x50 is a sleek, frameless wood burning fire with glass on 3 sides. As a result, it makes a luxurious room divider due to its all-round visual appeal. For even more impact, combine it with the special floating hearth kit so it can be installed at eye-level. It has a patented elevating door system with an integral handle for the smoothest possible operation.
Specifications
| Brand | Spartherm |
| Spartherm ID | Arte U-50h-4S |
| Series | Linear |
| Category | Wood fires |
| EcoDesign Ready | Yes |
| Energy efficiency class | A |
| Model | Built-in |
| Fire view | 3-sided |
| Shape | Square |
| Fuel | Wood |
| Combustion system | Combustion air from living area |
| Suitable for passive houses | No |
| Glass window | Standard glass |
| Door type | Elevating door with integral handle |
| Control | Manual control, Remote control Sesam, Smartphone/tablet |
| S-Thermatik NEO | Optional |
| Colours | Black |
| Material | Steel |
| Interior | White chamotte, Black chamotte |
| Output net min. (kW) | 6.3 |
| Output net max. (kW) | 11.7 |
| Max. log length (cm) | 33 |
| Efficiency (%) | 80.0 |
| CO emission (%-13% O2) | 0.1 |
| NOx emission (mg/Nm3-13% O2) | 93 |
| Built-in depth (mm) | 724 |
| Fire view width (mm) | 500 |
| Fire view height (mm) | 500 |
| Weight (kg) | 235 |
| Flue | Top |
| Flue Ø (mm) | 200, 250 |
| External air connection | Rear |
| Convection connection | Yes |
| 230V necessary | No |
| Approvals | EN13229, BlmSchV, Defra, EcoDesign |
The content of this website is intended for initial assistance only – for full details please contact the showroom or refer to the manufacturers website for each product – there you will find full technical details, the product fiche etc which gives all efficiencies, installation instructions, dimensions and so on. We are more than happy to provide these but do not have the facility on this website. If you let us know which fires you are interested in, we can provide full details by email. If you have any questions at all please let us know. Happy Browsing! In the showroom or by email we are quite happy to provide full technical advice about installation and suitability
