Spartherm – Linear Front 65×80
Build in fire with vertical fire view

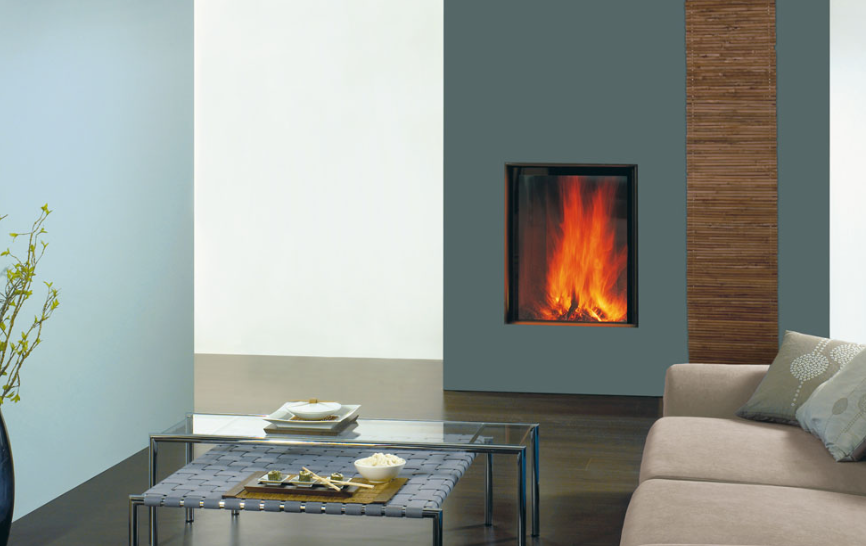

The Linear Front 65×80 is a vertically-shaped build in wood fire with a wonderful flame picture, enhanced by screen-printed glass. Optional standard or tapered combustion chambers allow you to select the capacity that best suits your room. The exclusive, patented elevating door system with extra drop down/side opening door and integral handle offers you ultimate ease-of-use.
Specifications
| Brand | Spartherm |
| Spartherm ID | Arte Bh-4S |
| Series | Linear |
| Category | Wood fires |
| EcoDesign Ready | Yes |
| Energy efficiency class | A |
| Model | Built-in |
| Fire view | Front |
| Shape | Vertical |
| Fuel | Wood |
| Combustion system | Combustion air from outside, Combustion air from living area |
| Suitable for passive houses | Yes |
| Glass window | Standard glass, Double glazing |
| Door type | Elevating door with integral handle |
| Control | Manual control, Remote control Sesam, Smartphone/tablet |
| S-Thermatik NEO | Optional |
| Colours | Black |
| Material | Steel |
| Interior | White chamotte |
| Output net min. (kW) | 7.7 |
| Output net max. (kW) | 14.3 |
| Max. log length (cm) | 33 |
| Efficiency (%) | 78 |
| CO emission (%-13% O2) | 0.1 |
| NOx emission (mg/Nm3-13% O2) | 118 |
| Built-in depth (mm) | 571 |
| Fire view width (mm) | 650 |
| Fire view height (mm) | 800 |
| Weight (kg) | 287 |
| Flue | Top |
| Flue Ø (mm) | 180, 200 |
| External air connection | Rear |
| Convection connection | Yes |
| 230V necessary | No |
| Approvals | EN13229, BlmSchV, EcoDesign |
The content of this website is intended for initial assistance only – for full details please contact the showroom or refer to the manufacturers website for each product – there you will find full technical details, the product fiche etc which gives all efficiencies, installation instructions, dimensions and so on. We are more than happy to provide these but do not have the facility on this website. If you let us know which fires you are interested in, we can provide full details by email. If you have any questions at all please let us know. Happy Browsing! In the showroom or by email we are quite happy to provide full technical advice about installation and suitability
