Dik Geurts – Instyle 600V Next

60 cm wide fan-assisted wood fire

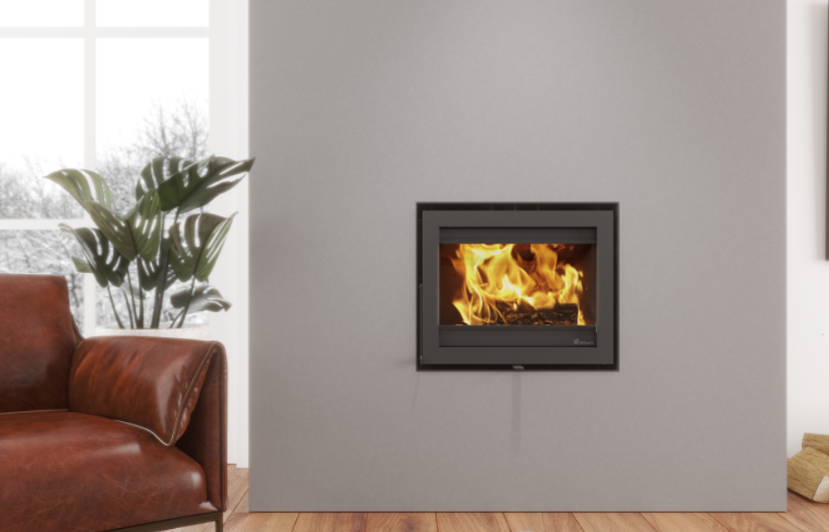

The Instyle 600V Next, at 60cms wide, can be built into a standard UK brick chimney. It can be used as a hole-in-the-wall wood fire insert or combined with a classic fire surround and hearth to create a more traditional log fireplace.
Specifications
Brand Dik Geurts
Series Instyle V Next
Category Wood fires
EcoDesign Ready Yes
Energy efficiency class  A
Model Insert
Fire view Front
Shape  Horizontal
Fuel Wood
Combustion system  Combustion air from living area
Suitable for passive houses No
Glass window  Standard glass
Door type  Hinged door
Control Manual control
DG Smart Assist No
S-Thermatik NEO No
Colours Dark anthracite
Material Steel
Interior  Vermiculite natural
Output net min. (kW) 3.0
Output net max. (kW) 7.0
Nominal heat output 4.9
Max. log length (cm) 42
Efficiency (%)  79.6
CO emission (%-13% O2) <0.1
Particulate Matter (mg/Nm3-13% O2) <40
OGC/CxHy (mg/Nm3-13% O2) <90
NOx emission (mg/Nm3-13% O2) <200

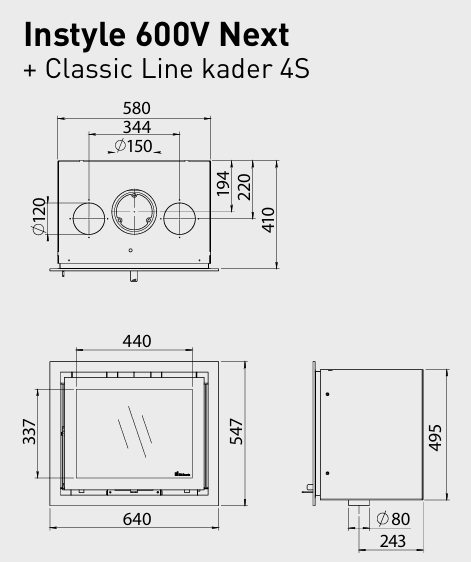

Built-in depth (mm) 410
Fire view width (mm)  440
Fire view height (mm)  337
Weight (kg)  98
Flue Top
Flue Ø (mm) 150
External air connection  Rear, Base
Convection connection  Yes
230V necessary Yes
Approvals EN13229, Flamme Verte, BlmSchV, Defra, EcoDesign








The content of this website is intended for initial assistance only – for full details please contact the showroom or refer to the manufacturers website for each product – there you will find full technical details, the product fiche etc which gives all efficiencies, installation instructions, dimensions and so on. We are more than happy to provide these but do not have the facility on this website.  If you let us know which fires you are interested in, we can provide full details by email. If you have any questions at all please let us know.   Happy Browsing! In the showroom or by email we are quite happy to provide full technical advice about installation and suitability.

Product Finishes
Black
Enquire
Prices from £2445.00
At the time of uploading these details the guide price should be accurate, but these are subject to change, and the guide price given will normally be for the basic appliance and may not include flue pipes, optional extras, different finishes etc. We hope the price guide will be helpful but please always check with the showroom for current and detailed pricing. All prices include VAT.

Last updated 27 March 2025
