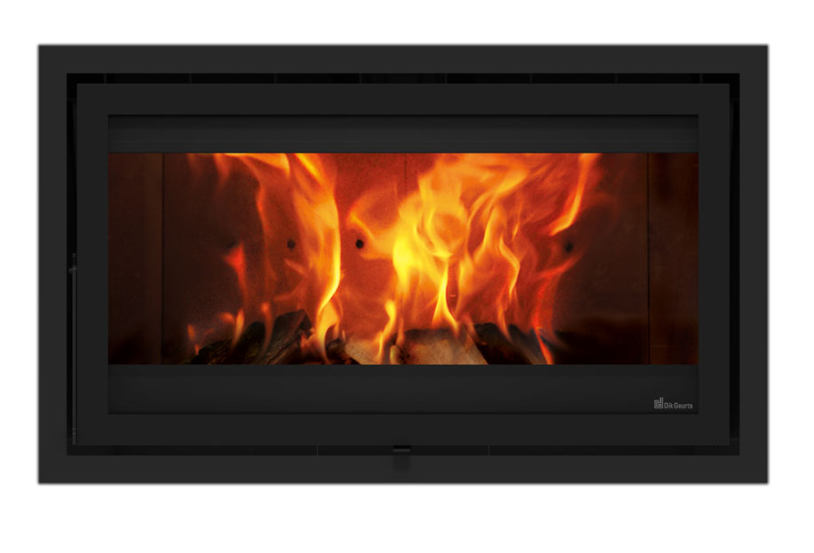

Dik Geurts – Instyle 1000

1 metre wide wood fire insert

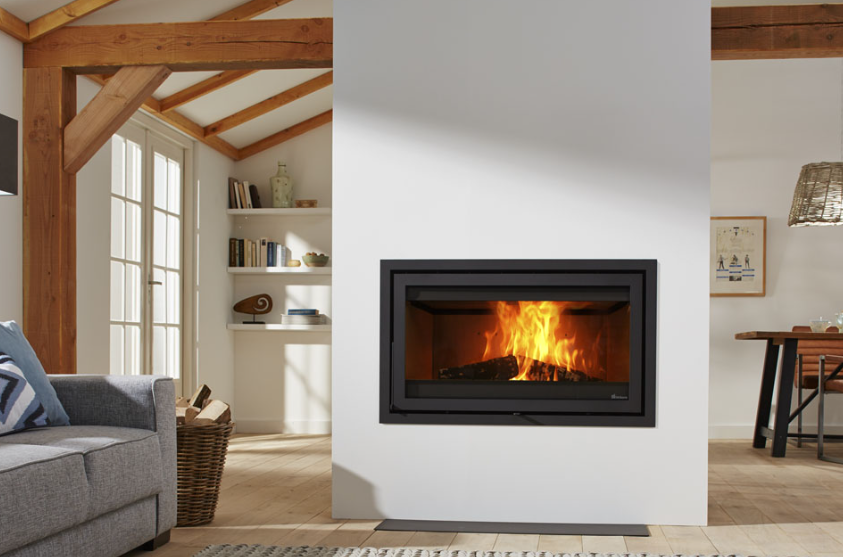

The Instyle 1000, 1 metre wide wood stove can be inserted into a standard UK brick chimney. It can also be built into a pre-fabricated chimney breast to create a spectacular letterbox-style wood fire. It has a heat output range from 9 – 13 kw and an impressive energy efficiency rating of 78%

Specifications

Brand Dik Geurts
Series Instyle/Prostyle
Category Wood fires
EcoDesign Ready Yes
Energy efficiency class  A
Product fiche Click for PDF-file
Model Built-in, Insert
Fire view Front
Shape  Horizontal
Fuel Wood
Combustion system  Combustion air from living area
Suitable for passive houses No
Glass window  Standard glass
Door type  Hinged door
Control Manual control
DG Smart Assist No
S-Thermatik NEO No
Colours Dark anthracite
Material Steel
Interior  Vermiculite natural
Output net min. (kW) 9.0
Output net max. (kW) 13.0
Nominal heat output 11.4
Max. log length (cm) 75
Efficiency (%)  77.7
CO emission (%-13% O2) <0.1
Particulate Matter (mg/Nm3-13% O2) <40
OGC/CxHy (mg/Nm3-13% O2) <90
NOx emission (mg/Nm3-13% O2) <200

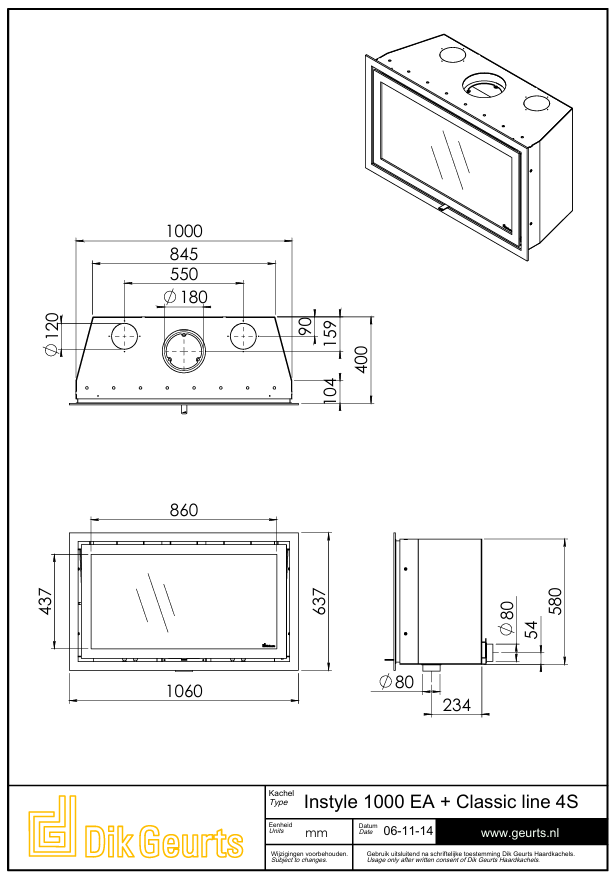

Built-in depth (mm) 400
Fire view width (mm)  860
Fire view height (mm)  437
Weight (kg)  140
Flue Top
Flue Ø (mm) 180
External air connection  Rear, Base
Convection connection  Yes
230V necessary No
Approvals EN13229, Flamme Verte, BlmSchV, EcoDesign










The content of this website is intended for initial assistance only – for full details please contact the showroom or refer to the manufacturers website for each product – there you will find full technical details, the product fiche etc which gives all efficiencies, installation instructions, dimensions and so on. We are more than happy to provide these but do not have the facility on this website.  If you let us know which fires you are interested in, we can provide full details by email. If you have any questions at all please let us know.   Happy Browsing! In the showroom or by email we are quite happy to provide full technical advice about installation and suitability.

Product Finishes
Black
Enquire
Prices from £2955.00
At the time of uploading these details the guide price should be accurate, but these are subject to change, and the guide price given will normally be for the basic appliance and may not include flue pipes, optional extras, different finishes etc. We hope the price guide will be helpful but please always check with the showroom for current and detailed pricing. All prices include VAT.

Last updated 27 March 2025

Enquire about Dik Geurts – Instyle 1000
