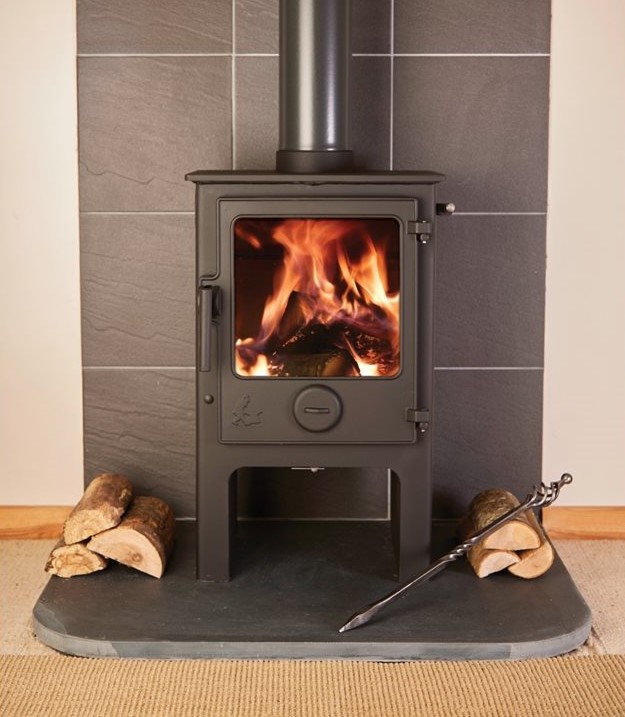

Dean Forge Dartmoor 5 ECO (Midi)

The Dartmoor 5 Eco is the most compact model in our timeless Dartmoor Eco Range. It combines exceptional energy efficiency with impressive heat performance, encased in a classic design. This stove is available in three different heights and various finishes, making it a popular choice for those looking to create a striking centrepiece in their home.

Available in Wood only and Multi-fuel options

Stove model available in Standard, Midi and High legs

Key Features
  • Wood and multi-fuel options available on the whole range. Supplied as a woodburner or multi-fuel with option to convert to either a woodburner or multi-fuel at anytime
  • Supplied with a black handle as standard
  • Powerful preheated airwash system
  • Independent primary and secondary air controls
  • Top and rear flue outlets
  • Tertiary air
  • Can be fitted onto a non-constructional hearth
  • DEFRA exempt (approved for smoke controlled areas)
  • Eco Design
  • Only 130mm distance to combustibles to the rear when fitted with a double heat shield and twin wall flue
  • Max log length 280mm
Output & Efficiency
Nominal Output                                             5kw
Energy Classification                                      A+
Efficiency (%)                                                  82.1%
Stove Dimensions & Flues
Width                                                                            430mm
Height                                                                          540mm (Standard) 690mm (Midi) 785mm (High)
Depth                                                                            320mm
Depth with Handle                                                        375mm
Depth with Double Heat Shield                                    335mm
Leg Length                                                                    50mm (Standard) 200mm (Midi) 300mm (High)
Flue Size                                                                        125mm
Flue Size Centre Top (A)                                                133mm
Flue Size Centre Rear (B)                                                438mm (Standard) 588mm (Midi) 688mm (High)
Distance to combustibles
Rear of stove                                                                            150mm
With Double Rear Heat Shield & Twin wall                              130mm
Side of stove                                                                              550mm

The content of this website is intended for initial assistance only – for full details please contact the showroom or refer to the manufacturers website for each product – there you will find full technical details, the product fiche etc which gives all efficiencies, installation instructions, dimensions and so on. We are more than happy to provide these but do not have the facility on this website.  If you let us know which fires you are interested in, we can provide full details by email. If you have any questions at all please let us know.   Happy Browsing! In the showroom or by email we are quite happy to provide full technical advice about installation and suitability.

Product Finishes
Black
Enquire
Prices from £1398.00
At the time of uploading these details the guide price should be accurate, but these are subject to change, and the guide price given will normally be for the basic appliance and may not include flue pipes, optional extras, different finishes etc. We hope the price guide will be helpful but please always check with the showroom for current and detailed pricing. All prices include VAT.
