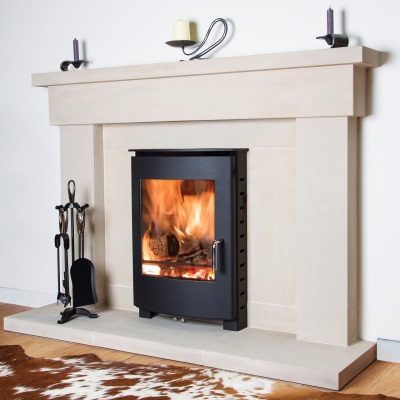

Dean Forge 105 Eco 5kW Inset Multi-fuel
The 105 Eco Inset is a multi-fuel stove designed to be installed into a fireplace opening with the chair brick removed. Ducting is built into all sides of the fire box, encouraging cold air to be drawn into the underside of the stove, before being heated up through the ducting and naturally convected into the room through the top and side venting.
Key Features
- Multi-fuel stove
- Double skin convector box to all sides of the fire box
- DEFRA exempt (approved for smoke controlled areas)
- Removable wood burning plate as standard
- Supplied with surround frame for wider fireplaces
- Tertiary air
- Max log length 250mm
- Large curved glass window
- Eco design
Nominal Output 5kw
Energy Classification A
Efficiency (%) 78%
Stove Dimensions & Flues
Width 455mm (Standard) 495mm (W/Surround)
Height 655mm
Depth 450mm
Flue Size 125mm
Distance to combustibles
Side of stove 200mm
Top of stove 400mm
The content of this website is intended for initial assistance only – for full details please contact the showroom or refer to the manufacturers website for each product – there you will find full technical details, the product fiche etc which gives all efficiencies, installation instructions, dimensions and so on. We are more than happy to provide these but do not have the facility on this website. If you let us know which fires you are interested in, we can provide full details by email. If you have any questions at all please let us know. Happy Browsing! In the showroom or by email we are quite happy to provide full technical advice about installation and suitability.
Black
At the time of uploading these details the guide price should be accurate, but these are subject to change, and the guide price given will normally be for the basic appliance and may not include flue pipes, optional extras, different finishes etc. We hope the price guide will be helpful but please always check with the showroom for current and detailed pricing. All prices include VAT.
Last updated 1 February 2025
